224G 80 kW Generator
$3,999.00
* Freight not included

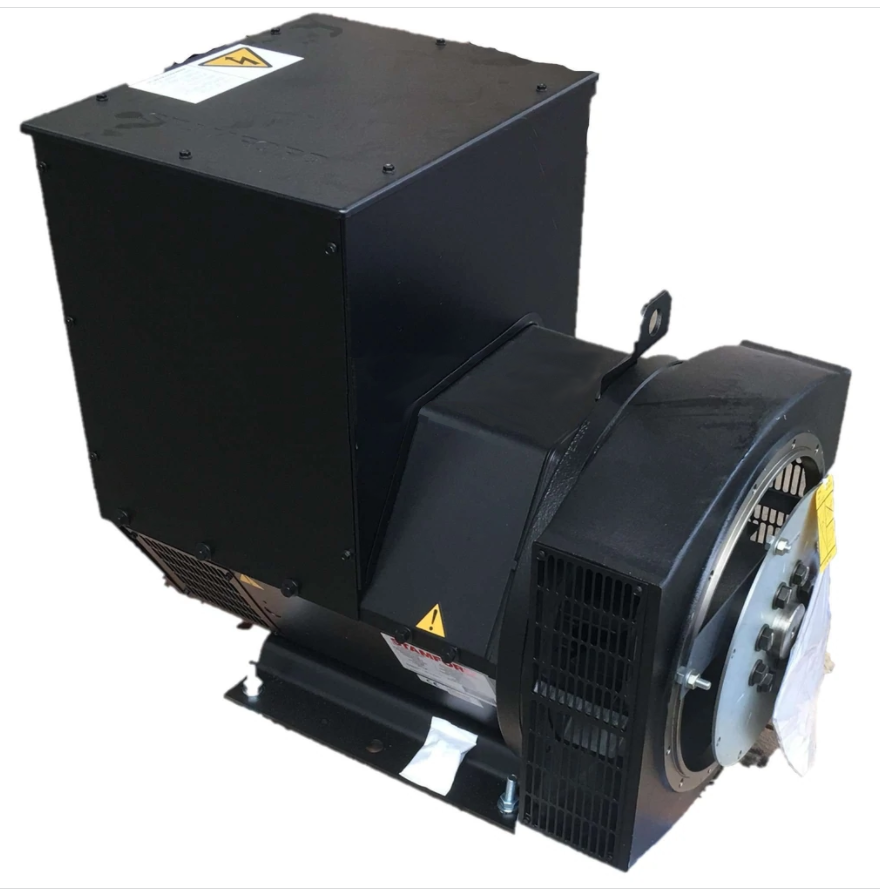

80 kW 224G Generator
PDG 22G F 80 KW
Auxiliary Boost Winding (150% boost of rated power for 5 seconds)
AVR AS440
Winding 311 – 12 Wire 3PH (277/480V)
Class H Insulation
60 HZ
4 Pole 1800 RPM
.8 Power Factor
Temp Rise/Ambient (125/40)
Unit Weight: 835 lbs.
Single Bearing (direct connect through SAE bellhousing & flywheel)
119HP Diesel engine required for full output, may use engine with less HP but will not produce full output
166HP Gas engine required for full output, may use engine with less HP but will not produce full output
