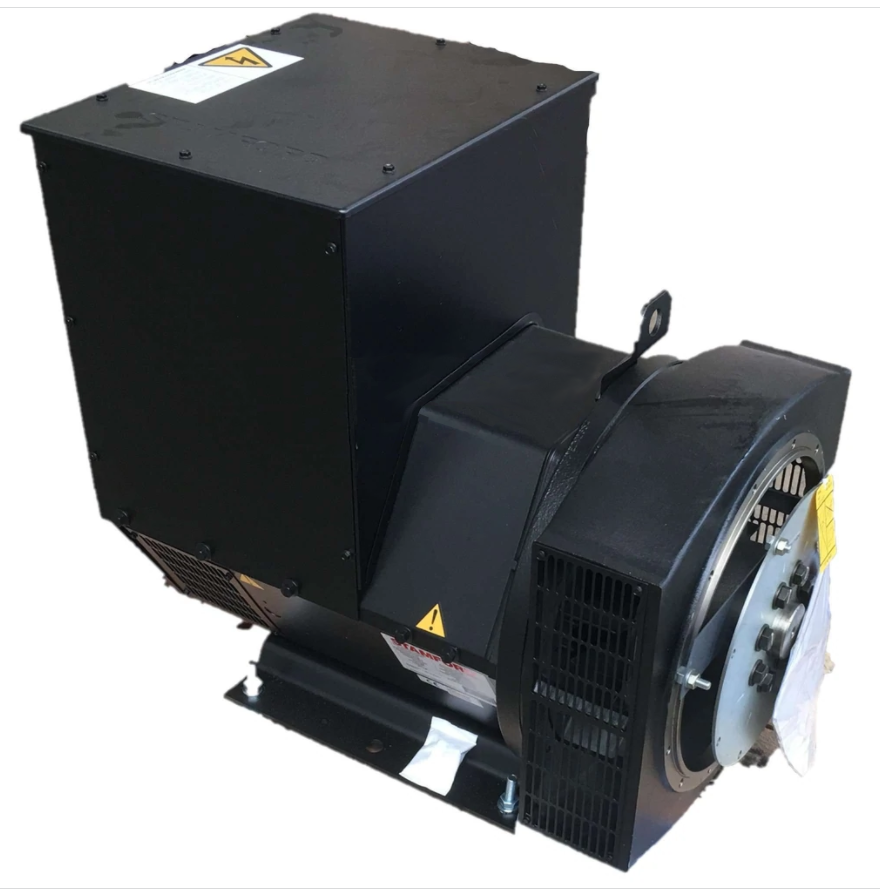

75 kW 224F Generator
$3,699.00
* Freight not included
75 kW 224F Generator
PDG 224 F 75 KW
Auxiliary Boost Winding (150% boost of rated power for 5 seconds)
AVR AS440
Winding 311 – 12 Wire 3PH (277/480V)
Class H Insulation
60 HZ
4 Pole 1800 RPM
.8 Power Factor
Temp Rise/Ambient (125/40)
Unit Weight: 735 lbs.
Single Bearing (direct connect through SAE bellhousing & flywheel)
107HP Diesel engine required for full output, may use engine with less HP but will not produce full output
150HP Gas engine required for full output, may use engine with less HP but will not produce full output
