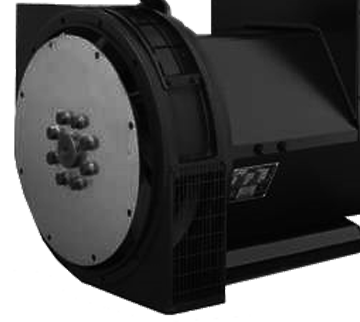

274H 204 kW Generator Head

200 kW 274H Generator
PDG 274H 200 KW

Auxiliary Boost Winding (150% boost of rated power for 5 seconds)

AVR AS440

Winding 311 – 12 Wire 3PH (277/480V)

Class H Insulation

60 HZ

4 Pole 1800 RPM

.8 Power Factor

Temp Rise/Ambient (125/40)

Unit Weight: 1485 lbs.

Single Bearing (direct connect through SAE bellhousing & flywheel)

291HP Diesel engine required for full output, may use engine with less HP but will not produce full output

408HP Gas engine required for full output, may use engine with less HP but will not produce full output
