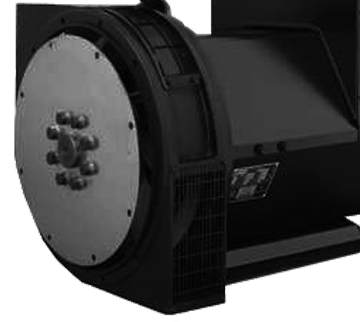

274E 143 kW Generator Head

143 kW 274E Generator
PDG 274E 143 KW

Auxiliary Boost Winding (150% boost of rated power for 5 seconds)

AVR AS440

Winding 311 – 12 Wire 3PH (277/480V)

Class H Insulation

60 HZ

4 Pole 1800 RPM

.8 Power Factor

Temp Rise/Ambient (125/40)

Unit Weight: 1150 lbs.

Single Bearing (direct connect through SAE bellhousing & flywheel)

204HP Diesel engine required for full output, may use engine with less HP but will not produce full output

286HP Gas engine required for full output, may use engine with less HP but will not produce full output
